2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector

Model Number : FC/UPC~FC/UPC

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 8000pcs/day

Delivery Time : 2-5days

Packaging Details : Professional Packing+Carton

Product name : Fiber optic patch cord

Model No. : FC/UPC~FC/UPC

Colour : Orange

Type : Multimode/Duplex

Insertion loss : ≤0.3dB

Return loss : ≥35dB

Product status : Stock

Warranty : 1 Year

Contact Now

FC/UPC~FC/UPC FC Connectors Multimode Duplex 2 Core Fiber Optic Cable Jumper OM1/2 Patch Cord

Parameters

Interface model:FC/UPC~FC/UPC	Mode:Multi-mode
Insertion loss:≤0.3dB	Number of cores:DX
Return loss:≥35dB	Ferrule type:Class A ceramic ferrule
Reliability:≤0.2dB	Operating temperature:'-40℃to +85℃
Repeatability:≤0.1dB	Fiber type:OM1(default),OM2
Tensile strength:45KG	Outer sheath material:PVC(default),LSZH,OFNP
Tensile strength:≥200N	Test wavelength:850nm~1300nm
Mating times:≥1000times	Cable outer length:0.9mm,2.0mm(default),3.0mm
Minimum bending radius:38mm	Optical fiber specifications:50/125µm,62.5/125µm

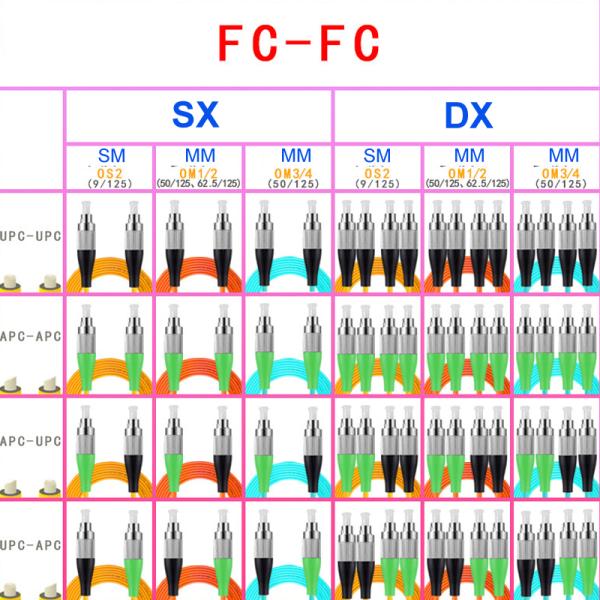

Product Image

2 Core Multimode Duplex Fiber Optic Cable FC UPC To FC UPC Connector

OEM/ODM Service

Offer OEM/ODM Service

1	Connector A	SC	FC	LC	ST	...
2	Grinding type A	PC,UPC,APC
3	Connector B	SC	FC	LC	ST	...
4	Grinding type B	PC,UPC,APC
5	Fiber diameter	0.9MM,2.0MM,3.0MM...
6	Fiber length	1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
7	Outer sheath material	PVC,LSZH,OFNP
8	Transmission mode	SM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125- OM3,MM50/125-OM4...
9	Number of working cores	SX, DX
10	Fiber type	G652D,G657A1,G657A2...

Item			Test Conditions	SM	MM
Optical properties	Insertion loss	upc	SM:1310-1550nm	≤0.2dB	≤0.3dB
			MM:850-1300nm
		apc	1310-1550nm	≤0.3dB
	Return loss	upc	SM:1310-1550nm	≥55dB	≥35dB
			MM:850-1300nm
		apc	1310-1550nm	≥65dB
Mechanical properties	Impact test		Height 1.8,8times	<0.1dB	<0.1dB
	Vibration test		10~60HZ,1mmFull amplitude
	Plug life		≥1000times
	tensile strength		>100N
	Pressure test		45kg
Environmental characteristics	High and low temperature cycle test		-25℃to +70℃ 2cycles	<0.2dB	<0.2dB
	High temperature test		+80℃,2hours
	Low temperature test		-40℃,2hours
	Warm test		+40℃90~95%RH,2hours

FAQ

Q: Can I get any discount?
A: Yes, price could be negotiated based on the quantity.
Q: What is the lead time?
A: Normally we will send the goods within 2-3 working days after received payment.
Q: Can you send to my forwarder?
A: Yes sure, no problem.
Q: How do you ship the goods?
A: We usually ship by DHL,UPS,FedEx or TNT.
Q: What is your warranty period?
A: We offer warranty 1 year for all new products. Generally speaking, there are not exist quality problems with our strictly quality supervision.

Our Services & Guarantee
1. Brand new.
2. OEM/ODM is available.
3. 100% through quality test and aging test.
4. Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.
